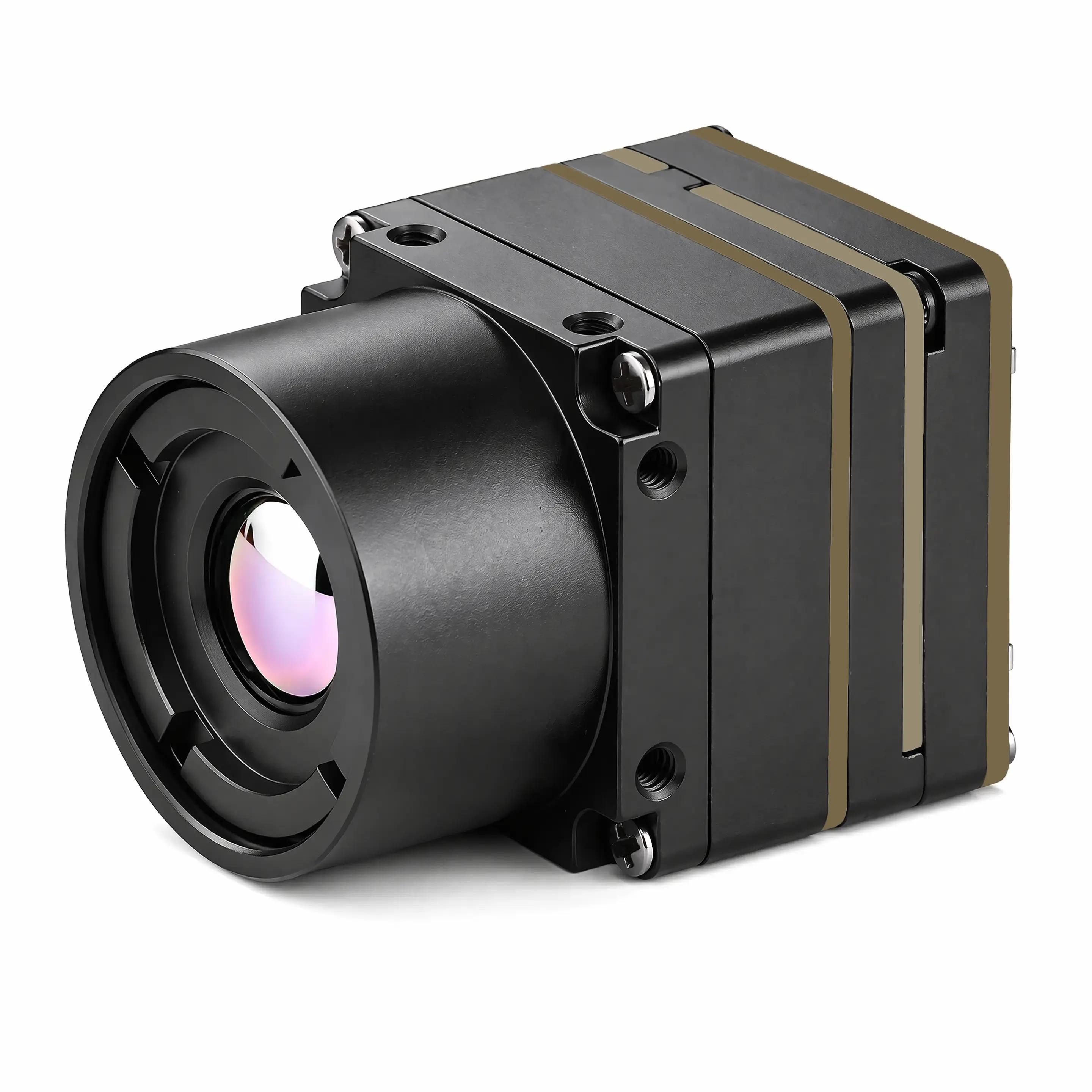

T-C Series Multifunctional Thermal Imaging Core The EAGLET T-C Series Thermal Imaging Core is a compact and high-performance infrared imaging module developed for professional OEM applications. Designed with an uncooled VOx focal plane array detector, the module provides stable long-wave infrared imaging performance with low power consumption, lightweight structure, and flexible integration capability. Supporting multiple resolutions including 256×192, 384×288, and 640×512, the T-C Series enables equipment manufacturers and system integrators to develop customized thermal vision products for industrial, robotic, unmanned platforms, and security applications. Based on advanced infrared sensing technology, EAGLET thermal imaging cores provide clear thermal images in challenging environments, including low light, complete darkness, smoke, and complex outdoor conditions. Key Features Lightweight & Compact Design Weight only 30g Compact dimensions: 21mm × 21mm × 34.7mm Suitable for space-limited embedded applications High Performance Infrared Detection Uncooled VOx infrared detector Long-wave infrared spectrum response:8–14 μm NETD:≤35 mK Stable thermal imaging performance Flexible Resolution Options Available configurations: Model Resolution T-C2 256 × 192 T-C3 384 × 288 T-C6 640 × 512 Low Power Consumption Power input:4.5V–18V Power consumption:≤0.5W Multiple Integration Interfaces CVBS video output UART control interface 5-pin connector design Supports embedded system integration Technical Specifications Parameter Specification Product Series T-C Series Detector Type Uncooled Focal Plane Array (VOx) Spectral Response 8–14 μm Resolution 256×192 / 384×288 / 640×512 Pixel Pitch 12 μm NETD ≤35 mK Frame Rate 50Hz / 60Hz Image Modes White Hot, Black Hot, Red Hot, Iron Red Electronic Zoom 1×–4× Shutter Mode Auto / Manual / External Trigger Detection Range 430m / 900m / 900m Lens Options 4.1mm / 9.1mm Operating Temperature -40℃ ~ +60℃ Weight 30g Dimensions 21mm × 21mm × 34.7mm Video Output CVBS (PAL) Control Interface UART Application Areas Industrial Inspection Suitable for integration into thermal inspection equipment for: Electrical equipment monitoring Machinery condition inspection Temperature anomaly detection Robotics & Unmanned Platforms Designed for: Inspection robots Autonomous systems Mobile thermal vision platforms UAV / Drone Thermal Imaging Compact and lightweight design enables: Drone payload integration Aerial thermal inspection Search and detection applications Security & Surveillance Used in: Night surveillance systems Perimeter monitoring Low-light security applications The EAGLET product portfolio supports applications including industrial inspection, security monitoring, UAVs, robotics, and outdoor observation through thermal modules and integrated optical systems. OEM / ODM Capability EAGLET provides thermal imaging core solutions for equipment manufacturers and system integrators. Customization services include: Thermal imaging module integration Resolution configuration Lens selection Interface customization Embedded system development support Industry-specific thermal vision solutions EAGLET's business model focuses on providing infrared core components, modules, and customized industry solutions rather than consumer thermal products. Product Advantages Why Choose EAGLET T-C Series? ✔ Professional infrared thermal imaging core manufacturer✔ Compact OEM-ready thermal module design✔ Multiple resolution options from 256×192 to 640×512✔ Low power consumption for portable devices✔ Flexible interfaces for system integration✔ Suitable for mass production and customized solutions

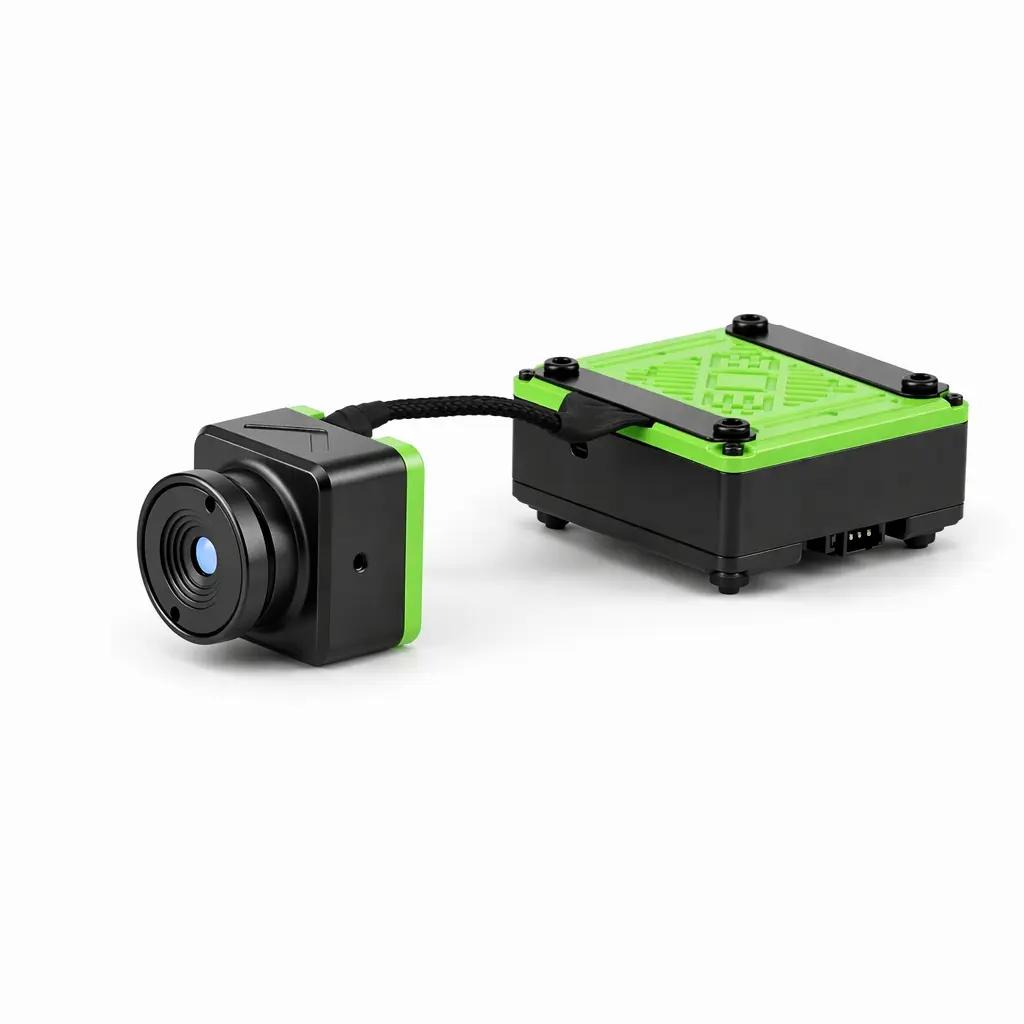

T256-S Compact Thermal Imaging Core Module The EAGLET T256-S Thermal Imaging Core is a high-performance yet compact infrared imaging module developed for professional embedded applications. Designed with a vanadium oxide (VOx) uncooled infrared focal plane detector, the module delivers stable thermal imaging performance with fast response, low power consumption, and easy system integration. With a 256×192 infrared resolution, 50fps real-time imaging capability, and 8–14μm long-wave infrared spectral response, the T256-S provides clear thermal images in various environments, including low light, darkness, smoke, and complex industrial conditions. The compact structure and lightweight design make it suitable for manufacturers developing portable thermal imaging equipment, UAV payloads, robotic vision systems, and customized infrared solutions. Key Features Compact & Lightweight Design Small-size thermal imaging core for embedded integration Lightweight structure for portable and mobile devices Suitable for space-limited applications High-Speed Thermal Imaging Resolution:256 × 192 Frame rate:50fps real-time imaging Low latency:<20ms Provides smooth thermal video output for dynamic targets and moving platforms. Advanced Infrared Detection Technology Detector type:Vanadium Oxide Uncooled Infrared Focal Plane Detector Spectral range:8–14μm NETD:≤50mK @25℃, F#1.0 Ensures reliable thermal sensitivity and accurate target detection. Low Power Consumption Power consumption:<1.5W Input voltage:9V–24V Designed for battery-powered and mobile thermal vision applications. Technical Specifications Parameter Specification Model T256-S Detector Type VOx Uncooled Infrared Focal Plane Detector Resolution 256 × 192 Frame Rate 50fps Pixel Size 12μm Spectral Range 8–14μm NETD ≤50mK @25℃, F#1.0 Aperture F1.0 Focal Length 4.1mm Field of View 50°(H) × 37.2°(V) IFOV 3.43mrad Latency <20ms Power Consumption <1.5W Video Output CVBS (PAL) Input Voltage 9V–24V Operating Temperature -20℃ ~ +60℃ Lens Dimensions 20 × 20 × 21mm Main Control Dimensions 34 × 34 × 17.2mm Applications UAV & Drone Thermal Imaging The lightweight design makes T256-S suitable for: Drone thermal payloads Aerial inspection systems Search and detection applications Robotics & Machine Vision Ideal for: Inspection robots Autonomous platforms Mobile thermal vision systems Security & Surveillance Suitable for: Night monitoring Perimeter security Low-light target detection Portable Thermal Devices Designed for integration into: Handheld thermal equipment Compact infrared cameras Professional inspection tools OEM / ODM Integration Capability EAGLET provides thermal imaging core solutions for equipment manufacturers and system integrators. T256-S supports: Embedded thermal camera development Customized hardware integration System-level thermal vision solutions OEM/ODM product development EAGLET's thermal imaging product line focuses on providing infrared cores and modules for equipment integration, supporting applications such as industrial inspection, security, UAVs, robotics, and customized thermal vision systems. Product Advantages Why Choose EAGLET T256-S? ✔ Compact 256×192 thermal imaging core✔ Uncooled VOx infrared detector technology✔ 50fps real-time thermal imaging✔ Low power consumption for mobile devices✔ Small footprint for embedded integration✔ Professional OEM/ODM thermal imaging solution

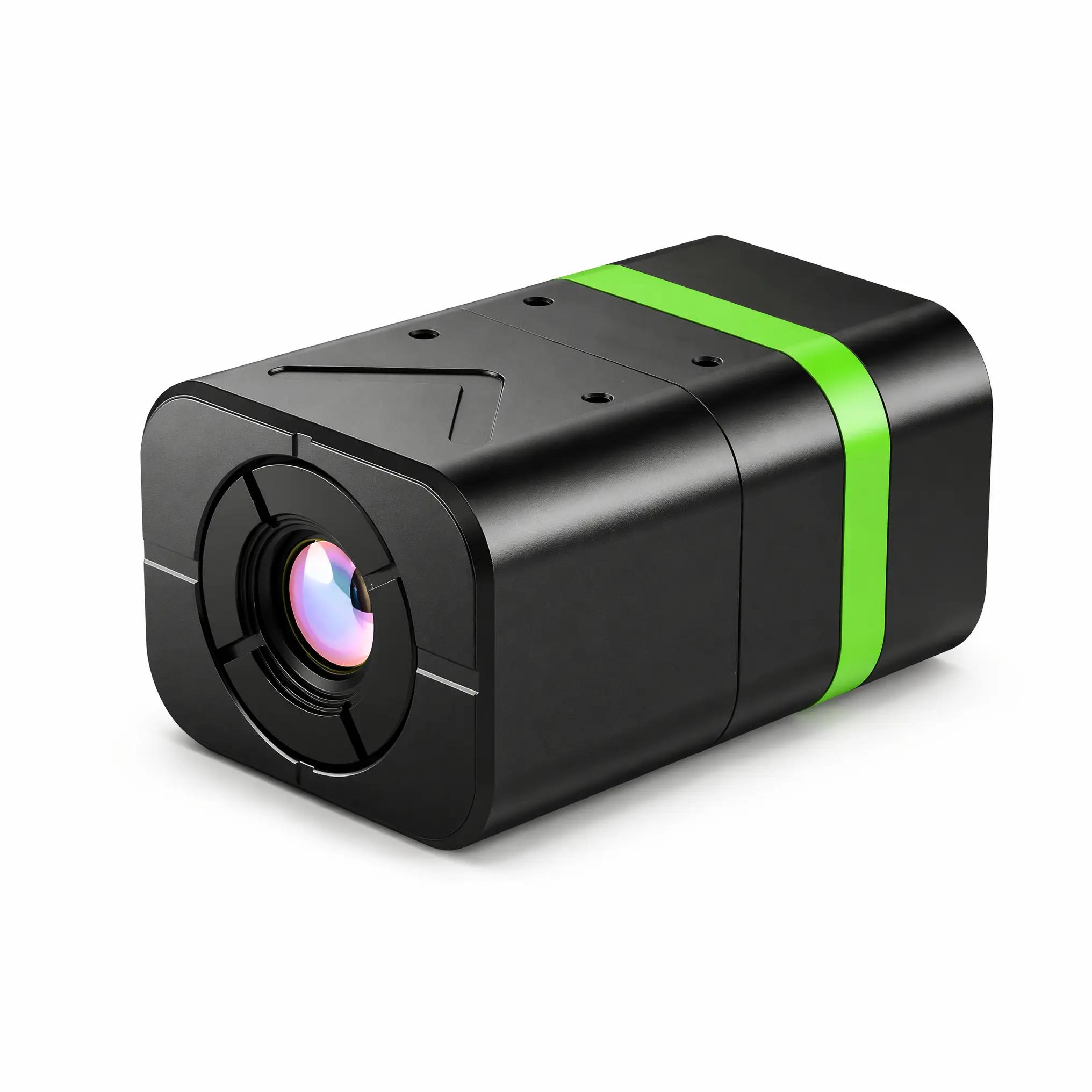

T384-I Multifunctional Thermal Imaging Core Module The EAGLET T384-I Thermal Imaging Core is a professional infrared imaging module designed for high-performance thermal vision applications. Equipped with a vanadium oxide (VOx) uncooled infrared focal plane detector, the module provides stable long-wave infrared imaging performance with high sensitivity, fast response, and flexible integration capability. Featuring a 384×288 infrared resolution, 50Hz frame rate, and 8–14μm spectral response, the T384-I delivers clear and responsive thermal images for demanding applications including industrial inspection, security surveillance, robotics, and intelligent optical systems. With a compact design, low power consumption, and multiple integration options, the T384-I is an ideal thermal imaging core for OEM manufacturers, system integrators, and professional equipment developers. Key Features High-Performance Thermal Imaging Resolution:384 × 288 Frame rate:50Hz Detector:VOx Uncooled Infrared Focal Plane Detector Spectral range:8–14μm Provides reliable thermal imaging performance for professional applications. Low Latency & Fast Response Image delay:<20ms Real-time thermal imaging capability Suitable for dynamic monitoring systems and moving platforms. Excellent Thermal Sensitivity NETD:≤50mK @25℃, F#1.0 Pixel size:12μm Enables accurate heat detection and enhanced thermal image clarity. Compact OEM Integration Design Power consumption:<1.5W Input voltage:9V–24V Weight:74g Dimensions:35 × 26 × 49mm Designed for embedded thermal vision products and customized optical systems. Technical Specifications Parameter Specification Model T384-I Detector Type Vanadium Oxide Uncooled Infrared Focal Plane Detector Resolution 384 × 288 Frame Rate 50Hz Pixel Size 12μm Spectral Range 8–14μm NETD ≤50mK @25℃, F#1.0 Aperture F1.0 Focal Length 9.1mm Field of View 65.5°(H) × 49.0°(V) Instantaneous Field of View 2.93mrad Latency <20ms Power Consumption <1.5W Video Output CVBS (PAL) Input Voltage 9V–24V Operating Temperature -20℃ ~ +60℃ Weight 74g Dimensions 35 × 26 × 49mm Applications Industrial Inspection The T384-I can be integrated into: Electrical equipment inspection systems Industrial condition monitoring Machinery thermal analysis Predictive maintenance equipment Security & Surveillance Suitable for: Perimeter monitoring Night security systems Critical infrastructure protection Low-light thermal detection EAGLET thermal imaging products support security monitoring applications in environments including darkness, smoke, and complex outdoor conditions. Robotics & Intelligent Vision Ideal for: Inspection robots Autonomous platforms Smart vision systems Mobile thermal imaging devices Professional Thermal Imaging Equipment Suitable for: OEM thermal cameras Industrial thermal scanners Customized infrared vision equipment OEM / ODM Integration EAGLET provides professional thermal imaging core solutions for equipment manufacturers and system integrators. T384-I supports: Embedded thermal camera development Customized thermal imaging equipment System integration projects Industry-specific infrared solutions EAGLET's business model focuses on supplying infrared cores, imaging modules, and customized solutions for industrial inspection, security, UAVs, robotics, and other professional applications. Product Advantages Why Choose EAGLET T384-I? ✔ 384×288 high-resolution thermal imaging core✔ Professional VOx uncooled infrared detector✔ 50Hz real-time thermal imaging✔ Low latency response (<20ms)✔ Compact structure for OEM integration✔ Low power consumption design✔ Suitable for industrial and security applications

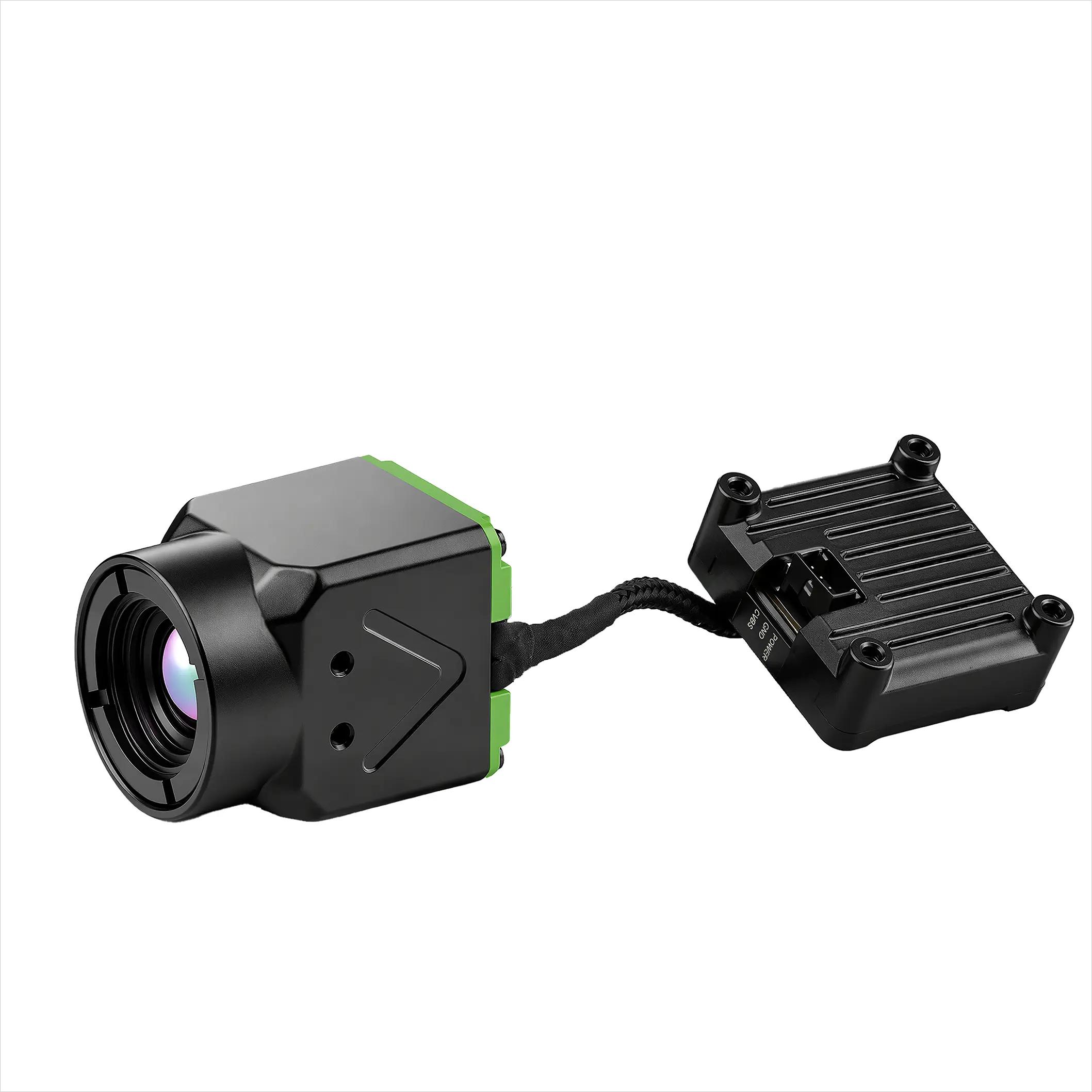

T640-S High Performance Thermal Imaging Core Module The EAGLET T640-S Thermal Imaging Core is a professional-grade infrared imaging module designed for demanding thermal vision applications requiring high resolution, fast response, and reliable performance. Equipped with an advanced Vanadium Oxide (VOx) uncooled infrared focal plane detector, the T640-S delivers high-definition thermal images with 640×512 resolution, 50fps frame rate, and 8–14μm long-wave infrared spectral response. With excellent thermal sensitivity, low latency, compact structure, and low power consumption, the T640-S is designed for integration into professional thermal imaging systems, including industrial inspection equipment, security systems, robotic platforms, UAV payloads, and customized infrared vision solutions. Key Features Ultra-High Resolution Thermal Imaging Resolution:640 × 512 Detector:VOx Uncooled Infrared Focal Plane Detector Pixel size:12μm Provides detailed thermal images for professional detection and analysis. Fast Real-Time Imaging Frame rate:50fps Image stabilization:within 20 milliseconds Latency:<20ms Suitable for dynamic targets and real-time monitoring applications. High Thermal Sensitivity Spectral range:8–14μm NETD:≤50mK @25℃, F#1.0 Aperture:F1.0 Ensures accurate thermal detection in complex environments. Compact OEM Integration Design Power consumption:<1.5W Input voltage:9V–24V Compact module structure Fixed focus optical design Ideal for embedded infrared systems and professional equipment development. Technical Specifications Parameter Specification Model T640-S Detector Type Vanadium Oxide Uncooled Infrared Focal Plane Detector Resolution 640 × 512 Frame Rate 50fps Pixel Size 12μm Spectral Range 8–14μm NETD ≤50mK @25℃, F#1.0 Latency <20ms Focal Length 9.1mm Aperture F1.0 Field of View 48.3°(H) × 38.6°(V) IFOV 2.93mrad Focus Mode Fixed Focus Focus Distance 9.1mm Power Consumption <1.5W Video Output CVBS (PAL) Input Voltage 9V–24V Operating Temperature -20℃ ~ +60℃ Lens Module Dimensions 22 × 22 × 27.5mm Main Controller Dimensions 24 × 24 × 11mm Applications Industrial Inspection T640-S is suitable for: Electrical equipment inspection Mechanical fault detection Industrial thermal monitoring Predictive maintenance systems EAGLET thermal imaging cores support non-contact temperature monitoring and industrial inspection applications for detecting abnormal heating, overload, and potential equipment failures. Security & Surveillance Applications include: Border monitoring Critical infrastructure protection Night surveillance Long-range thermal detection The T640 series is designed for professional security and inspection systems requiring high-resolution thermal imaging. UAV & Robotics Vision Suitable for: Drone thermal payloads Autonomous inspection robots Mobile thermal vision platforms Intelligent optical systems EAGLET provides thermal imaging cores for UAV, robotics, and mobile platforms requiring night vision, inspection, and image transmission capabilities. Professional Thermal Imaging Equipment Ideal for integration into: High-end thermal cameras Remote observation systems Industrial monitoring equipment Customized infrared solutions OEM / ODM Integration Capability EAGLET provides professional thermal imaging core solutions for equipment manufacturers and system integrators. T640-S supports: Thermal camera OEM development Embedded infrared system integration Customized optical equipment design Industry-specific thermal vision solutions EAGLET's business model focuses on infrared core technology + modules + complete systems + industry solutions, providing both core components and integrated optical solutions. Product Advantages Why Choose EAGLET T640-S? ✔ 640×512 high-resolution thermal imaging✔ Professional VOx uncooled infrared detector✔ 50fps real-time thermal imaging✔ Low latency (<20ms) response✔ High thermal sensitivity (≤50mK)✔ Compact OEM integration design✔ Low power consumption✔ Designed for professional industrial applications
